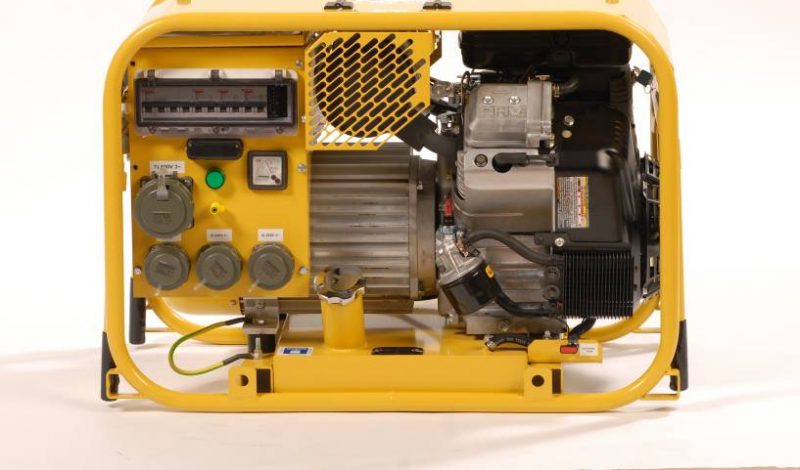

Brandweer 8.5 kVA hand.start

Artikelnaam:  Brandweer 8.5 kVA hand.start
Rubriek: Brandweer en hulpdiensten
Artikelcode:  952990502 EPDIN8500T-BSS
 € 5747,50
Aantal:


Generator:                   3~ 400V                       1~ 230V



Standby output (kVA):   8,5   1x4kVA on 1 socket or 8,5kVA divided over the 3 schuko sockets



Cont. output (kVA):        8      1x3.6kVA on 1 socket or 8kVA divided over the 3 schuko sockets



Amps (continu):               11,5  1x16A on 1 socket or 3x11,5A divided over the 3 schuko sockets



Dimensions in cm (l x w x h):        82 x 44 x 58



Dry weight (kg):                            140



Engine:



Brand / Type:                  BRIGGS & STRATTON VANGUARD 18 HP



Power:                  12,1 kW (3000 rpm), gasoline, 2-cylinder, air-cooled



Displacement:       570 cm³



Consumption (at 75% load) for generator use:   3,8 litres/hour



Tank:                               10 liter



Autonomy (at 75% load):   2,6 hours



Starter:                              recoil starter



Noise level at 75% load at 7m for generator use:           74 dB(A)/7m

Equipment:                        Oilpressure sensor (engine shut down)





Alternator:



Brand / Type:   SINCRO / SSG132 MB2-R  – synchronous  – brushless – IP54 – with AVR



Nominal voltage:                                  3~ 400V / 1~ 230V


Frequency:                                          50 Hz (3000 rpm)

Arguments:

·        Generating set with high quality VANGUARD 18HP gasoline engine

·        Sincro alternator – brushless – IP54 – with AVR

·        Compliant to DIN14685

·        4 lifting handles

·        2 hinged protection top covers

·        Large – easy to fill fuel tank 10 litre

·        Toolbox with spare parts

o   spark plug wrench

o   open-end wrench 10-11 / 12-13mm

o   oil filter

o   fuel filter

o   air cleaner element

o   2 spark plugs

o   set of fuses

·        Maintenance: fuel filter, oil filter, air cleaner element, oil filler cap, oil/fuel drain are easily accessible

·        Control panel:

o   1 socket 5pole 16A – IP67 / 3 sockets schuko 2pole 16A – IP68

o   Thermal magnetic protection for every socket

o   Control panel light 12V

o   Earth tester with indicator lamp + test cable 1m

o   Power meter with maximum indicator

    • Hour counter
    • V-meter
    • Start – Stop button

Options:

  • Insulation protection
  • Flexible exhaust extension 1,5m (adapter for muffler included)
  • 12V connector for external battery start
  • 20L jerrycan and quick couplings
  • 3-way fuel cock with quick couplings for connection to external fuel tank
  • Other options on request
